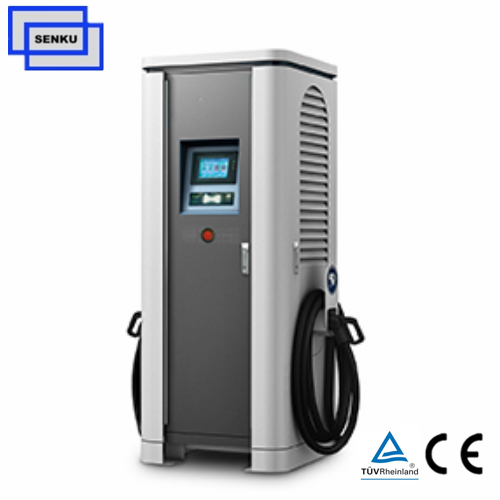

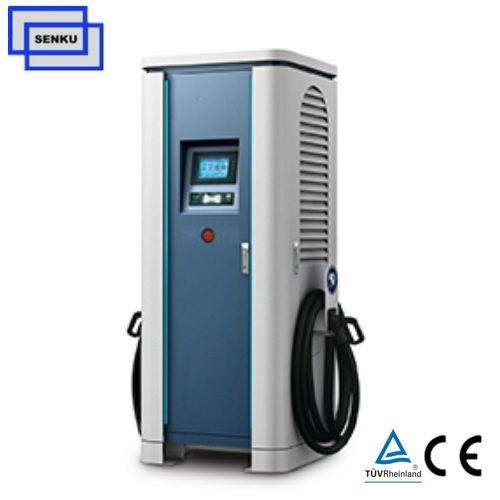

250V-750VDC 60KW - 150KW DC EV Charger
- Rated Voltage: 400VAC±10%
- Rated output voltage(V): 150-750V
- Output Power: 60kw/75kw/90kw/120kw/150kw
- Output Current(A): 0~200A
- Product description: 1-The universal charging station support the newest OCPP2.0 protocol.Easy connected to customer back-end and APP, realize remote control,charging,management. 2-The universal charging station 250~750V
Product introduction
Applicable for public charging stations site, plant charging place, expressway service areas, hospital and business places.

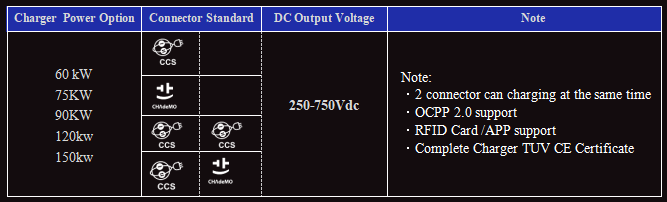

Charger Possible configurations
Standard Features
– CCS1 / CCS2 / CHADEMO Support
– Internet with Wifi/3G/4G/Ethernet; OCPP 2.0 compliant
– Ready to use software embedded
– IP54 design for harsh environment
– Easily configure the output power form 60KW to 150KW
– TUV CE certificated
– Customized Brand Painting support
More Features
Specification |
Model |
SZEQC-U2E |
AC Nominal Input |
Phases/ Lines |
3-phase; 3P+N+PE |
Input Voltage |
400VAC ±10% |
|
Frequency |
50Hz-60Hz |
|
DC Nominal Output |
DC Voltage Accuracy |
<±0.5 |
Output Voltage/current |
60kw @ 100A (50A for DC1 and DC2) 75kw@ 125A(75A for DC1 and 50A for DC2) 90KW@150A (75A for DC1 and DC2) 120KW@200A (100A for DC 1 and DC2) 150KW@200A ( 100A or DC1 and DC2) |
|
Output Efficiency |
>94% (Rated input and output) |
|
Electrical Specification |
LED Indicator |
Yes |
LCD Touch Screen |
Colorful 7" Touch screen |
|
Emergency Stop Button |
Yes (Red Color) |
|
RFID Function |
Yes (Authorized RFID cards can charged only) |
|
RFID Card Quantity |
2pcs Mifare card |
|
Smart Phone APP |
Yes (Support use the smart phone to charge and make payment) |
|
Energy Meter |
DC energy meter |
|
Structure Design |
Housing Material |
Metal case |
Installation Method |
Floor-stand |
|
Application scenes |
Commercial / Public charging |
|
Charging Outlet |
Combo CCS2 / CHAdeMo / Combo CCS1 option one |
|
Charging Outlet Quantity |
1 or 2 option |
|
Cable Length |
5M cable |
|
Communication |
Network Method |
Wifi; Ethernet; 4G |
Communication Protocol |
PLC; CAN |
|
OCPP 2.0 JSON ( Charger with ocpp board inside) |
||
Environmental Index |
Operating Temperature |
-30~+50°C |
Working Humidity |
5%~95% without condensation |
|
Working Altitude |
<2000M |
|
Protection Grade |
IP54 / IK10 |
|
Application Site |
Indoor/Outdoor |
|
Cooling Method |
Fan cooling |
|
Security Protection |
Multi le Protection |
OverCurrent Protection, Over/ Under Volatge Protection, Short Circuit Protection, Reverse Polarity Protection, OverTemperature Protection, Protect, Earth Connect Monitoring, Full automatic stop |
MTBF |
100,000 hours |
|
Certificate Compliance |
Complete charger comply with CE, TUV CE Certificated. EN 61851-1:2011, EN 61851-23:2014, EN 61851-24:2014, EN55022 CLASS A |
|
Warranty |
1 years |
|
Dimension |
Dimension & Weight |
590*820*1840 mm & 502KG (150kw) |
