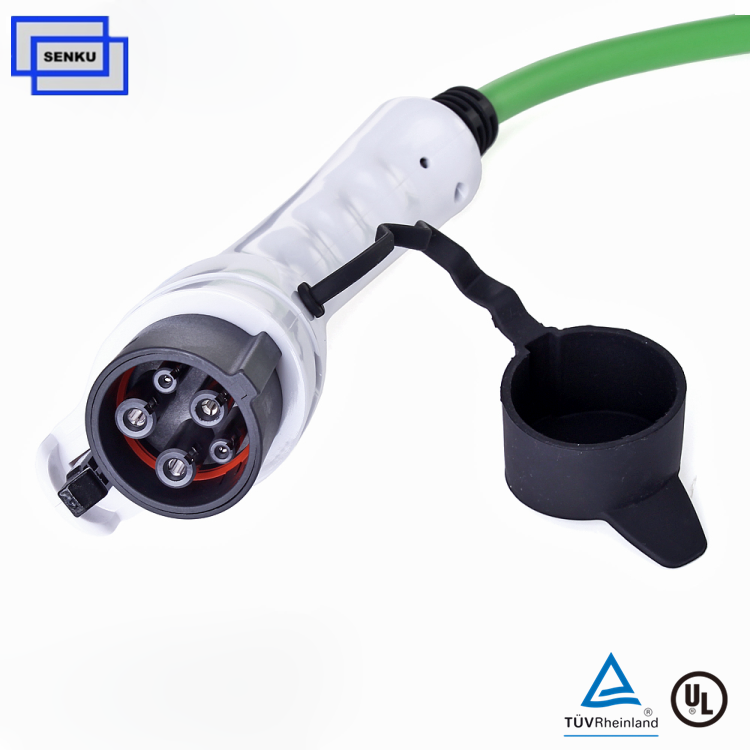

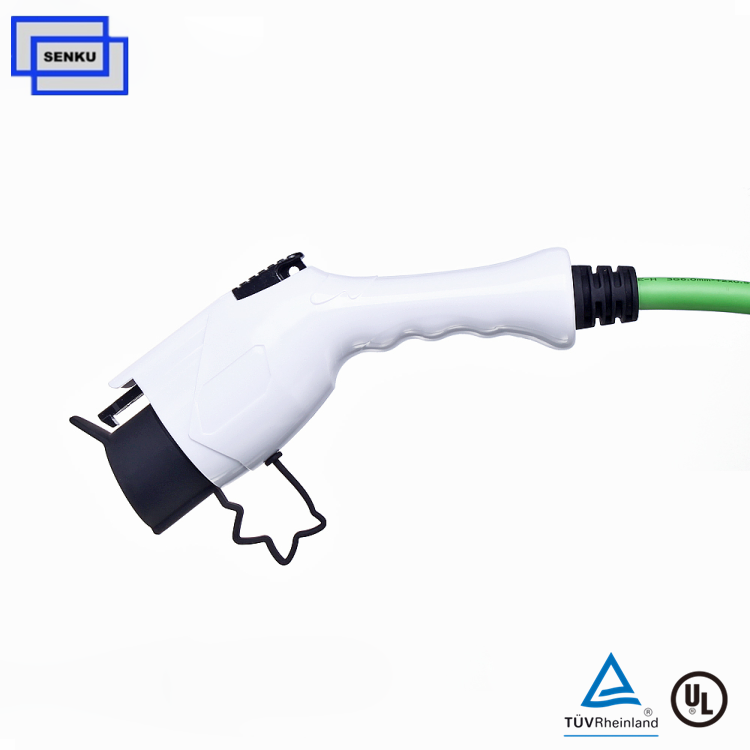

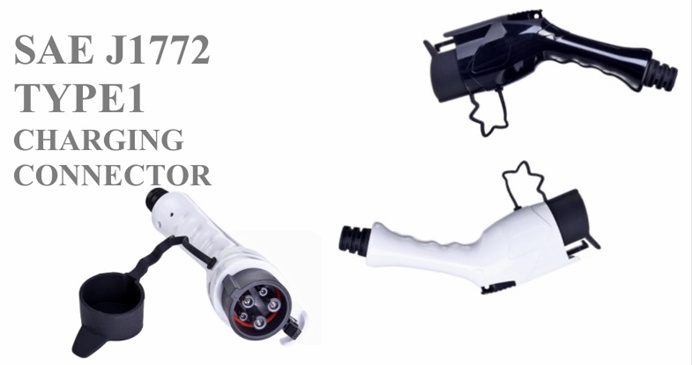

Sae j1772 Type1 Female Ev Plug
- Rated Current: 16A/32A/40A
- Rated Voltage: 240VAC
- Certificate: TUV CE RHOS
- IP Level: IP54
- Product description: The type1 sae j1772 connector meet the US standards. the type1 sae j1772 connector can install on the Ac fast charging stations with cable. it can charging all the type1 electric cars.
Product introduction
Features
-The sae j1772 connector meet the SAE J1772-2012, IEC 62196-2 2016 2-I Standards.
Electric Performance
Rated current
16A (or 32A or 40A)
Operate Voltage
250V AC , Single Phase
Insulation resistance
>1000MΩ (DC500V)
Terminal temperature rise.
<50K
Withstand Voltage
2000V
Mechanical life
no-load plug in / plug out > 10000 times ; Impact of external force: can offord 1m drop and 2T vehicle run over pressure
Materia
Thermoplastic, Flame retardant grade UL94-0;
Pin: Cooper alloy,sliver + thermoplastic on the top
Operation Temp.
-30℃ ~ + 50℃
IP protection class
IP 54
NOTE:
Please inform us the model and the cable length that you need(if you need the cable), then we can share the correct information, Thanks for your support!
-Nice appearance, hand-held ergonomic design, easy plug.
-Safety Pins insulated head design to prevent accidental direct contact with users.

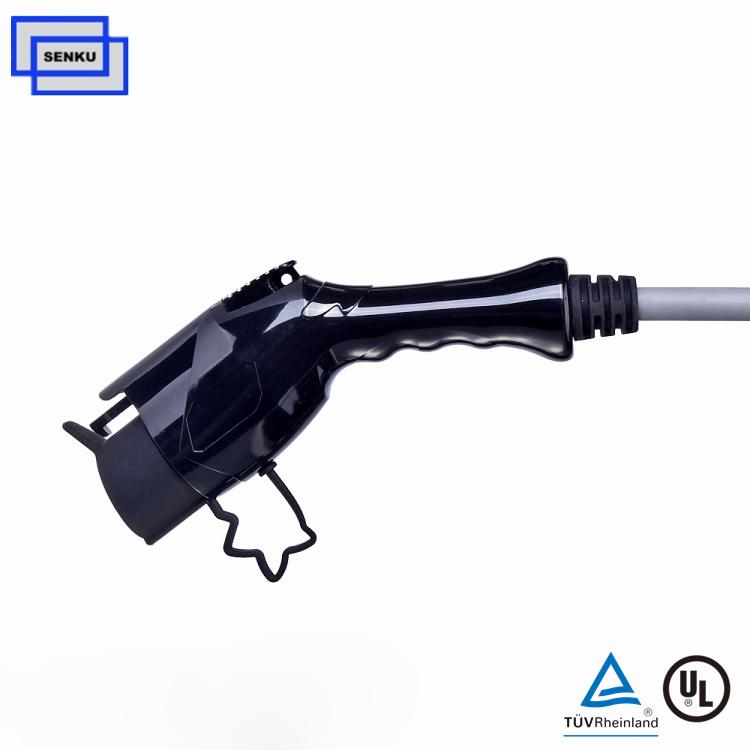

-The sae j1772 connector with white and black color for option, brand customized service support.
Standard
SAE J1772 Standard Type 1
Conatct Resistance
0.5 megohm MAX
Model
Specific
SCBYUL-ev16CT
16A / 240VAC ; 3 × 2.5mm² + 2 × 0.75mm² ; Customized cable length
SCBYUL-ev32CT
32A / 240VAC ; 3× 6mm² + 2 × 0.75mm² ; Customized cable length
SCBYEN-ev40CT
40A / 240VAC ; 3 × 8mm² + 2 × 0.5mm² ; Customized cable length
