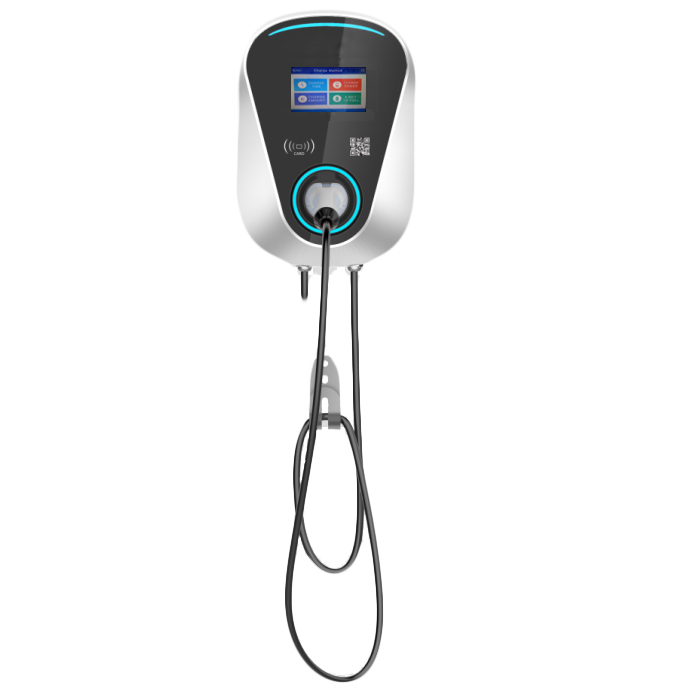

Type2 32A Wallbox Charger 5inch Screen
- Rated current: 0 - 32A
- Rated Voltage: 230V AC
- Rated Power: MAX 7.2KW
- IP Level: IP 55
- Product description: The 32A ev wall charger has the 5 inch large LED Touch Screen, and you can choose the charging mode: charging by time, charging by power, charging by cost and atomatic to full,make charging process mo
Product introduction
Type2 32A outdoor EV Charger
Features:
1- Easy operate

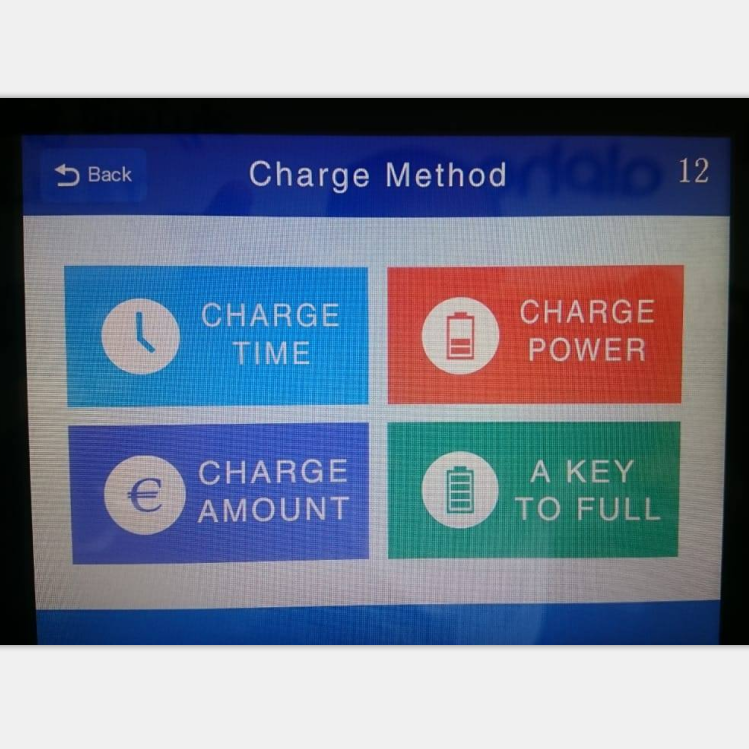

The outdoor ev charger have four chargin model for option: you can choose charging by time or charging by cost or charging by power or automatic to full on the charer's LCD touch screen. And the touch screen size is 5 inch, then you can easy to operate the charger.
2-Saftly
The outdoor ev charger have got the TUV CE certificate, and it with 8 kind of protect (you can check them in the following table).
3- Widely application
The outdoor ev charger with IP54 perotect level, it can install indoor and outdoor.
we have tested and prove the ev wall charger can charging most evs on the road.
And the ev wall box charger can install in home for private use, and this charger also can install in public place, such as street, parking lot, fleet etc...
Electric Performance. |
|
Rated current |
32A |
Rated voltage |
230V AC |
Output Power |
MAX7.2KW |
Charging Plug |

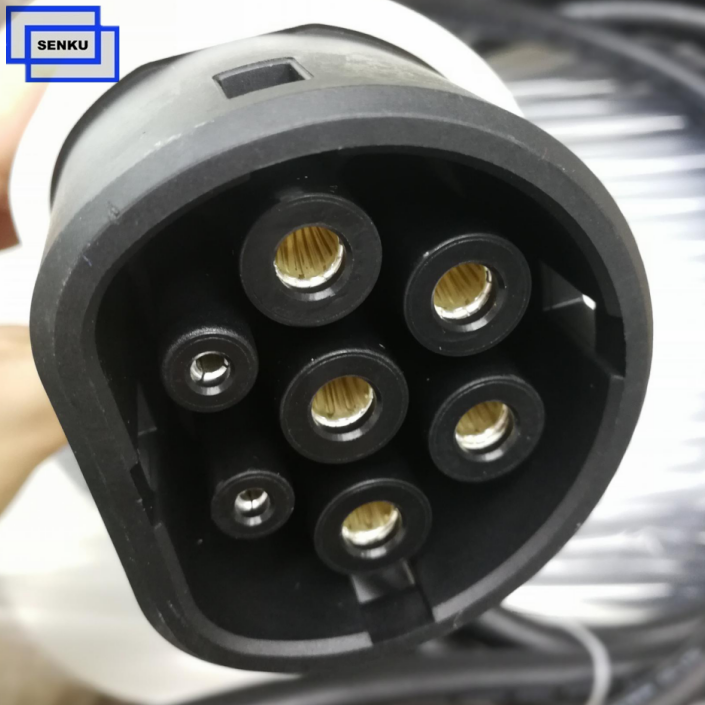

IEC 62196 Standard Type2 Plug |
Charging cable length |
5m (Standard); or Customized |
Start Method |
Plug and play or use the RFID Card to start or stop |
EMI |
CISPR22/EN 55022 CLASS B |
EMS |
EN61000-4-5±2KV/ ±4KV perf. Criteria B |
Standards |
EN 61851-1 |
Working Humidity |
5%-95% without condensation |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 54 |
Protection |
Leakage detection and protection ; Over-voltage;Under-voltage protection;Over-load protection(self-checking recover); Over-temperature rotection; Double Lightning protection (professional SPD + Lightning protection); Emergency stop button protection; Power failure data records; |
Certificate |
CE Certificate |
NOTE: ANY QUESTION PLEASE CONTACT US.
