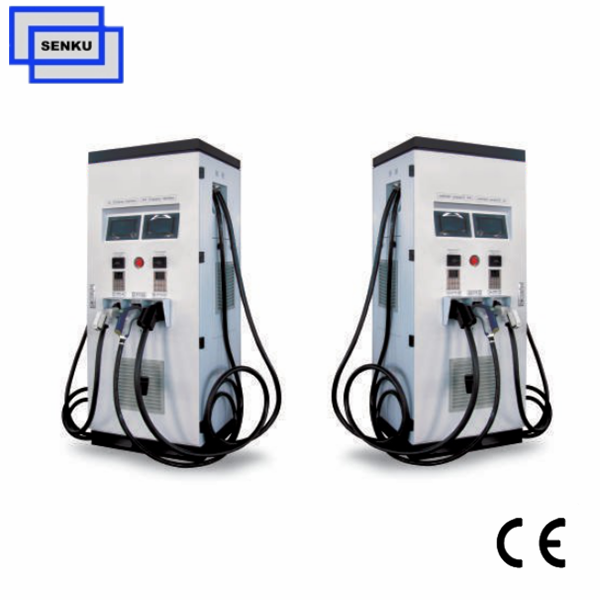

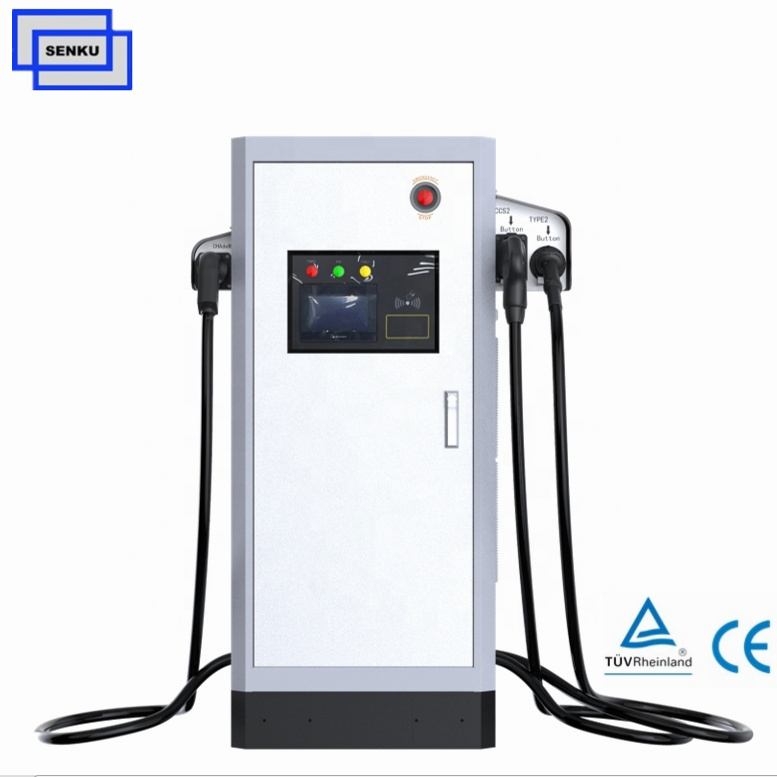

50V-500VDC 50KW CCS Type2 CHAdeMO DC EV Charger
- Rated Voltage: AC400V±10%
- Rated output voltage(V): 50-500V
- Output Power: 0-50kw
- Output Current(A): 0-125A
- Product description: The 50kw multi device ev charging station with combo ccs2 and CHAdeMo and AC Type2 charging connectors. It can charging 3 different standards electric cars and it save the installation cost. What's mo
Product introduction
The multi device ev charging station able to charge all electric vehicles compliant with CHAdeMO charging system and Combined Charging System(CCS) standards and AC Type2 AC Charging system.
The multi device ev charging station is designed to be installed in stree or Highway petrol/service station operators, hotel or restaurant,workplaces or Commercial fleet operators, EV Infrastructure operators and service providers,CCS EV dealers and importers, college or hospital,central commercial palce,car park (both inside and outside)
SZEVQC-U3M
Charging Interface
AC Type 2 Output
Combo-2
CHAdeMo
Input voltage range (V)
AC 400V±10%
AC 400V±10%
AC 400V±10%
Frequency
50Hz
50Hz
50Hz ±10%
Max. rated input current
150 A
150 A
150 A
Max. rated input power
100 (kVA)
100 (kVA)
100 (kVA)
Voltage Type
3 Phase 3P + N + PE
3 Phase 3P + N + PE
3 Phase 3P + N + PE
Rated output voltage(V)
400V±10%
200-500V DC
50-500V DC
Rated output Power
44kw
50kw
50kw
Output current (A)
63 A (AC)
125A ±5 % (DC)
120A (DC)
Efficiency
99%
95%
95%
Connection standard
EN 61851-1:2010
EN 61851-23/DIN70121
CHAdeMO1.0
Connector Type
IEC 62196 Typ 2
Combo Typ 2
CHAdeMO / JEVS G105
Power factor (full load)
≥0.99
≥0.99
≥0.99
RFID-System
YE
HMI
Glare-free 7-inch touch screen,Display of the charging process
Payment
Visa/Master card (Induction type)
Communication Protocol
OCPP 2.0
Networking
Ethernet (standard), 3G/4G (optional)
Electric meter
MID (Measuring Instruments Directive) 2004/22/EG
Standards
IEC 62196, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC ~ +70 ºC
Operating temperature
-30 ºC ~ +55℃
Protection Level
IP54
Operating noise (dBA)
≤65dBA
Conformity and safety
CE
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over-Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
DC+AC connector can charging at the same time, Max charging 2 EVs at the same time.
