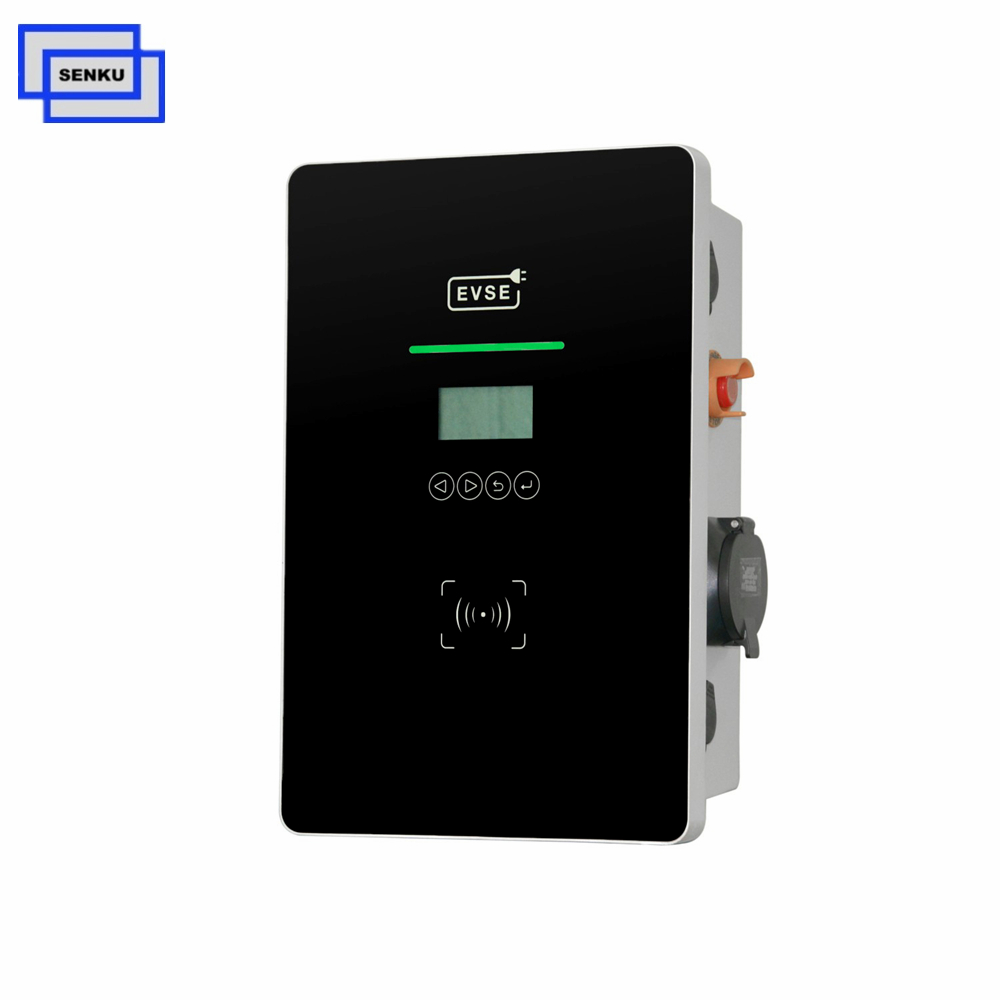

Public 7KW Type 2 Iec 62196 Socket Ocpp1.6 EV Charger

Input Rating：1phase 230V±10%; 50Hz
Rated Current: 32A
Total Power：7KW
MTBF：100,000 hours
Product description: The mode3 socket charging station can be connected to a charging network with the help of ocpp gateway. Multiple public chargers in one location can be integrated in the network with only one interne
Inquiry

Product introduction

Features

1- High Intelligence

a)The mode3 socket ev charging station can connected to the ocpp cloud server to remote manage the ev charging stations..

b) Support use the RFID card and APP to charge.

c) The 7kw mode3 socket harging station with LED light and screen to show the charging statu and real-time information. What's more, the commercail charger with the touch botton for easy operate.

2-High Flexibility

a) The 7kw mode3 socket charging station can set the output current by the touch button: 16A (3.5kw) / 32A (7kw).

b)With IP54 protection level.The charger can install both indoor and outdoor.

3-Aplication

a) Parking lot ; b) Restaurants; c) Commercail Centre; d) Destinations; e) Fleets; f) Apartments etc...

Specification	Model	SAC7000-BE-24 (Socket Type)
AC Nominal Input	Phases/ Lines	1 phase + netural+ PE
	Voltage	230VAC±10%
	Frequency	50Hz
AC Nominal Output	Voltage	230VAC±10%
	Current	32A
	Power	7KW
Structure Design	Housing Material	Galvanized steel
	Front Panel	Temper glass
	Installation Method	Wall mounted / Floor-stand
	Wall-mount Bracket	Not necessary
	Charging Outlet	1 charging Socket (Type 2)
	Cable Length	0M cable
	LED Indicator	Green/yellow/red color for different status
	LCD Screen	Display of charging data
	Touch Buttons	4 touch buttons for screen operation
	Emergency Stop Button	Yes
	RFID Function	Yes
	RFIDCard	2pcs Mifare card
	Energy Meter	MID certified Energy Meter
	RCD	Type A (30mA AC) + 6mA DC
Communication	Gateway Network	Wifi / Ethernet/3G/4G
Communication	Communication Protocol	OCPP 1.6 (JSON) (with the help of ocpp gateway)
Environmental Index	Operating Temperature	-30~+50°C
	Working Humidity	5%~95% without condensation
	Working Altitude	<2000M
	Protection Grade	IP54
	Application Site	Indoor / Outdoor
	Cooling Method	Natural cooling
Security Protection	Multi le Protection	Over/Under voltage protection, Overload protection, Short circuit protection, Current leakage protection, Grounding protection, Surge protection, Over/Under temperature protection protection, Grounding protection, Surge protection, Over/Under temperature protection
	MTBF	100,000 hours
	Safety Standard	IEC 61851-1: 2017, IEC 62196-2: 2016
	Warranty	1 years
Package Information	Dimension & Weight	356221136MM & 3KG
Option Parts	Ground Install	Install Pile
Option Parts	Mode3 Charging Cable	Type2 to Type2 / Type2 to Type1 (Click the following picture to check details)
