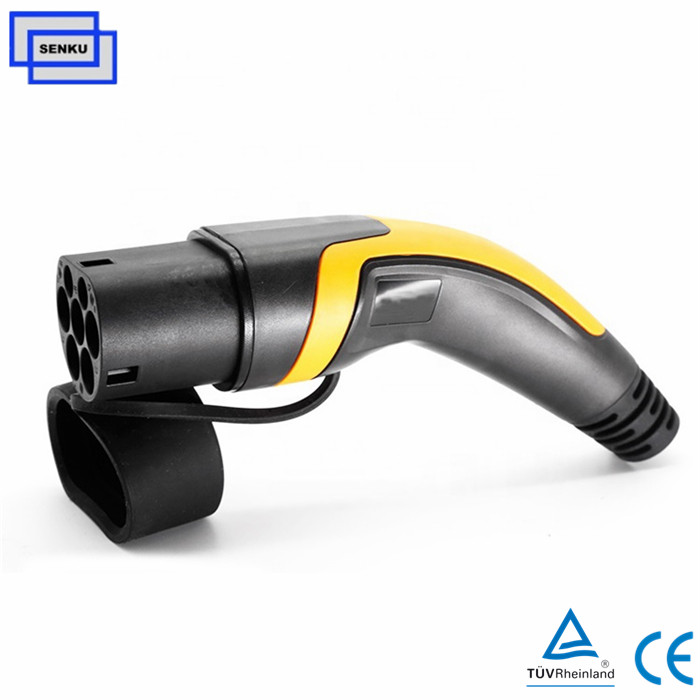

Iec 62196 Male Ev Plug for Charging Station Side
- Rated Current: 16A / 32A
- Rated Voltage: 250V / 480V AC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: The type2 charging connector meet the EU standardS. the type2 charging connector can charging all the type2 electric cars. With special inner design, more safer.
Product introduction
Features
1- The type2 iec62196 connector with TUV CE RHOS certificates, it is safty and reliable.
2- The type2 iec62196 connector with safty pins insulated head design to prevent accidental dirrect contact with staff.
3-The type2 iec62196 connector can install on the fast ev charging station as electric outlet to charging the electirc cars.

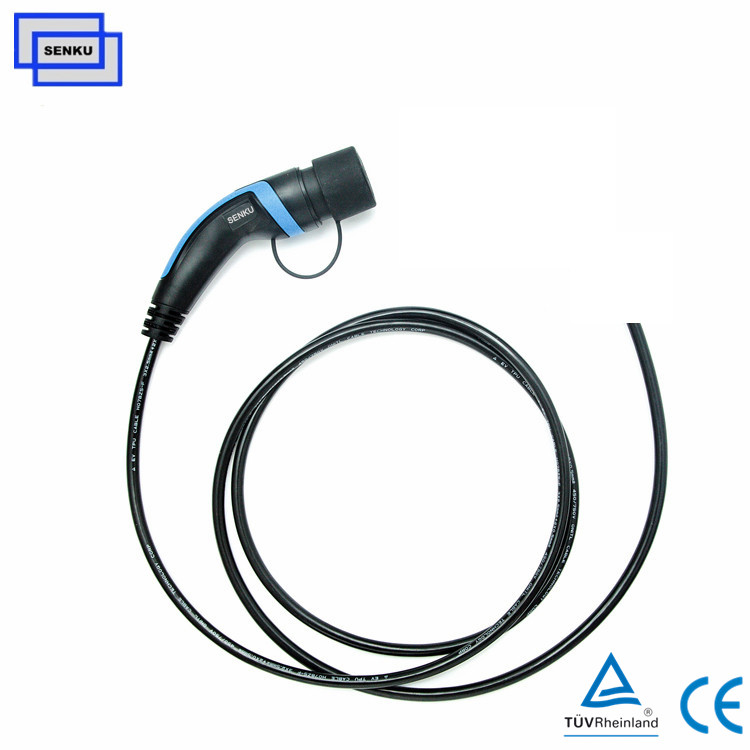

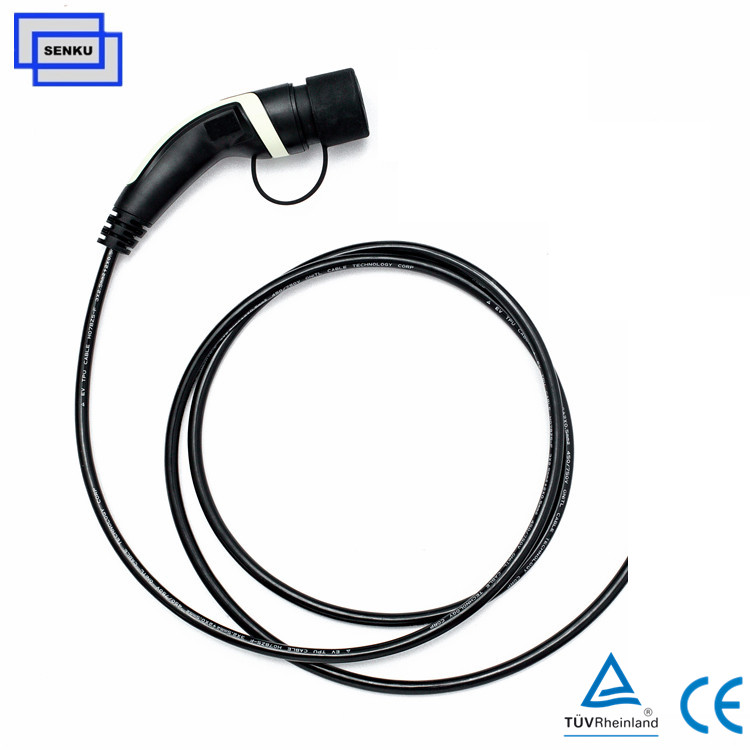

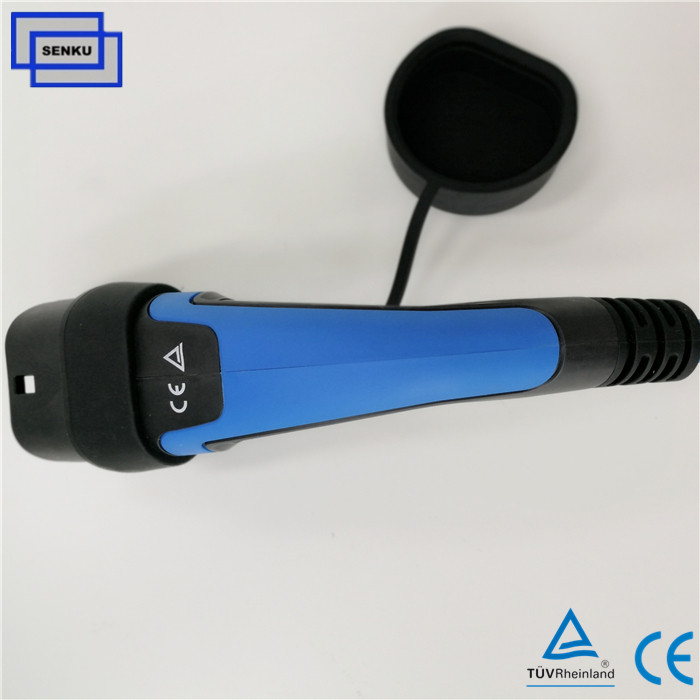

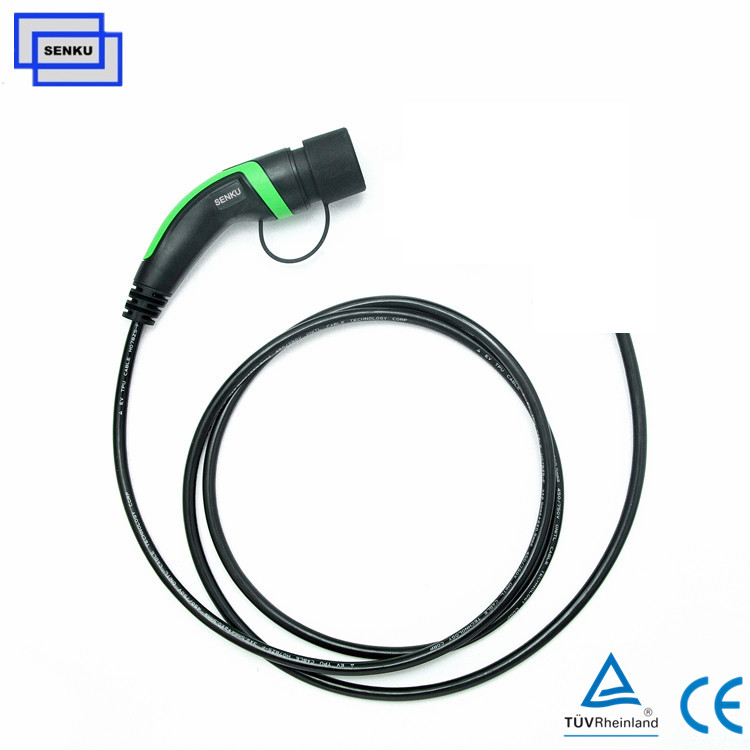

4- The plug with Black / Orange / Green / Blue / White color for option
5-Brand customized support, Plug color and Cable color customized support
Electric Performance |
|
Rated current |
16A (or 32A) |
Operate Voltage |
250V AC , Single Phase (or 480VAC, Three Phase) |
Standard |
IEC 62196 Standard Type 2 |
Insulation resistance |
>1000MΩ (DC500V) |
Terminal temperature rise. |
<50K |
Withstand Voltage |
2000V |
Conatct Resistance |
0.5 megohm MAX |
Mechanical life |
no-load plug in / plug out > 10000 times ; Impact of external force: can offord 1m drop and 2T vehicle run over pressure |
Materia |
Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 55 |
Model |
Specific |
SAG-IEC 2-IIb-16P |
16A / 240VAC ; 3 × 2.5mm² + 2 × 0.75mm² ; Customized cable length |
SAG-IEC 2-IIb-16P-3 |
16A / 415VAC ; 5 × 2.5mm² + 2 × 0.75mm² ; Customized cable length |
SAG-IEC 2I-Ib- 32P |
32A / 240VAC ; 3× 6mm² + 2 × 0.75mm² ; Customized cable length |
SAG-IEC 2I-Ib-32P-3 |
32A / 415VAC ; 5 × 6mm² + 2 × 0.75mm² ; Customized cable length |
NOTE: In order to ensure fast and correct communication,please send us the model and cable length that you need, thanks in advance! Please note this plug should sell with cable (because this plug use the riveting produce process, users can't opent it install cable), if you only need plug, please click here to find the correct products. |
