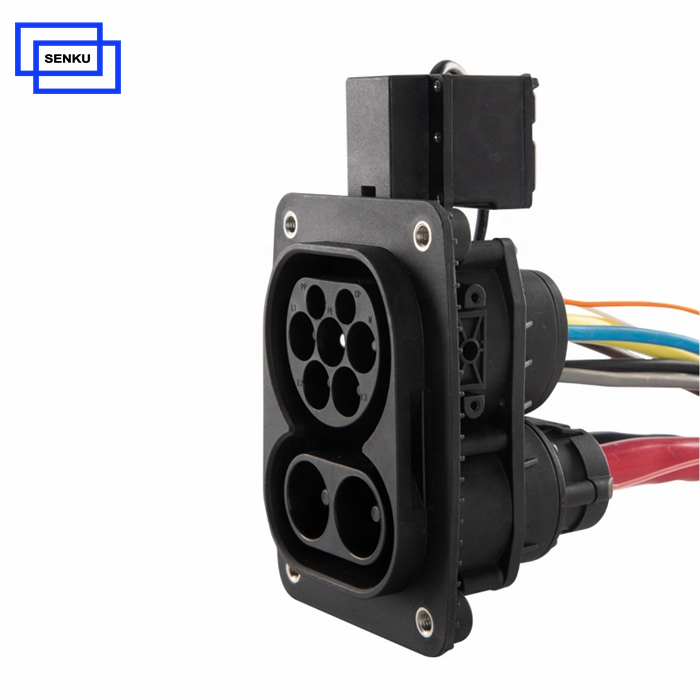

150A Combo 2 Socket for Vehicle Side
- Rated Current: 150A
- Rated Voltage: 1000V DC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: The ccs2 charging socket meet the EU standardS. the ccs2 charging socket can install on the CCS2 electric cars.
Product introduction

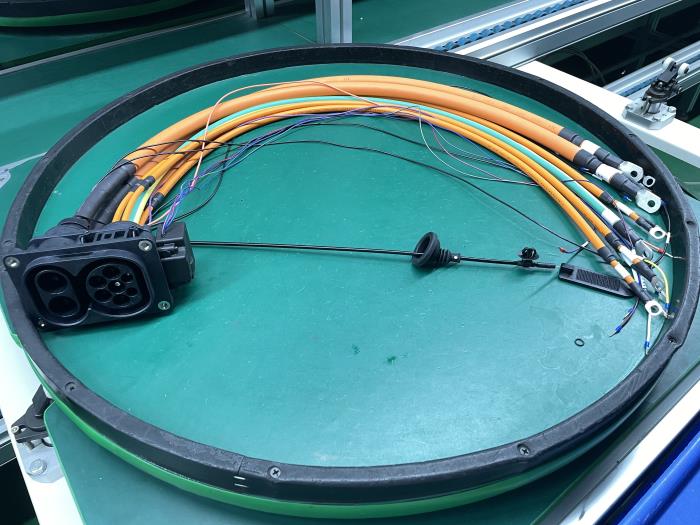

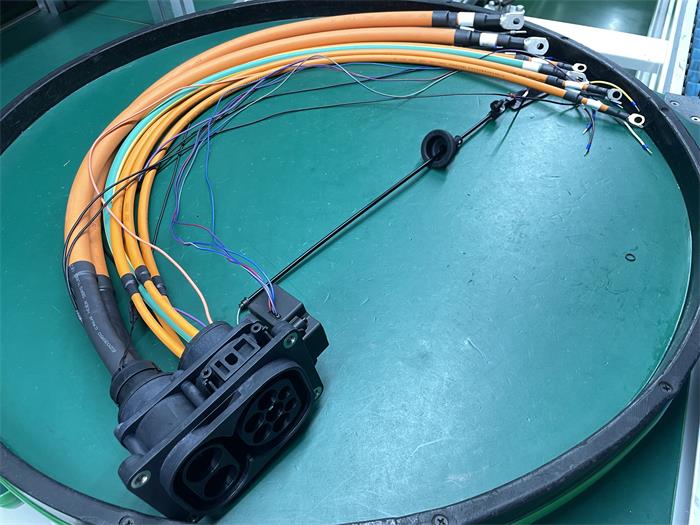

150A ccs2 charging socket
Features
1- The ccs2 charging socket with TUV CE RHOS certificates, it is safty and reliable.
2- The ccs2 charging socket with safty pins insulated head design to prevent accidental dirrect contact with staff.
3-The ccs2 charging socket can install on electirc cars, then you can use the ccs charging gun to charging the EV.
Basic Data
Electric Performance. |
|
DC input |
150A, 1000V DC |
AC input |
32A or 63A for option, 415V AC MAX (please note the ac input current you need when inquiry) |
Standard |
IEC 62196 Standard Combo 2 Socket |
Insulation resistance |
>2000MΩ (DC1000V) |
Terminal temperature rise. |
<50K |
Withstand Voltage |
3200V |
Conatct Resistance |
0.5 megohm |
Mechanical life |
no-load plug in / plug out > 10000 times |
Materia |
Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 55 |
ANY QUESTION PLEASE CONTACT US.
