Type2 OCPP1.6 Smart 22KW 32A charger
- Rated Current: 32A
- Rated Power: 7kw
- Phase: 1 Phase
- ocpp:OCPP 1.6
- Product description: The 22kw ev charger with ocpp1.6 protocol, it can be easy connected to the customer's back-end, realize remote monitoring, management and maintenance functions. Support Ethernet / 4G communication, an
Product introduction

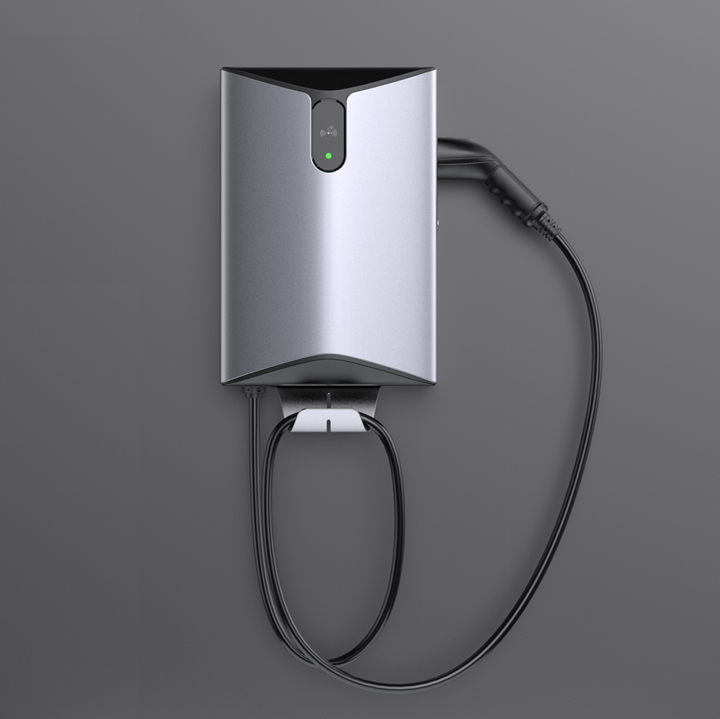

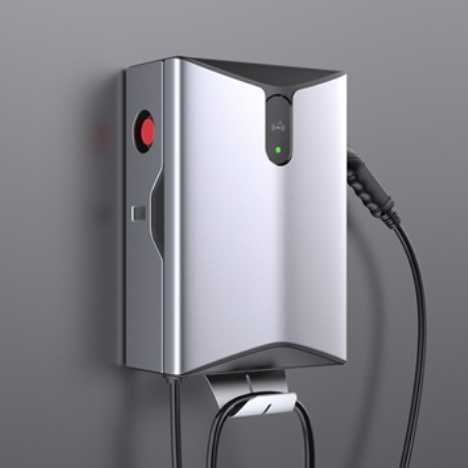

Type2 32A 22kw EV Charger
Features:
1- Appearance
The 22kw ev charger appearance is design accoding to the feedback form the EU customer. It can meet the EU market requiremnt.
2-Smart
The 22kw ev charger with OCPP 1.6 protocol inside. So it can directly connected to customer manage back-end with 4G or Ethernet.
Then the customer can remote start and stop, management the charger. And it also support control by customer APP.
3- Safty
The whole charger was CE certificated. So you do not need to worry abot safty problems.
4-Application
The 22kw ev charger suotable for commercial use. It can be install both indoor and outdoor. It is the best choice for Ev operateors.
Electric Performance. |
22KW Smart Charger |
Voltage |
3-Phase 380V±15% |
Frequency |
50/60Hz |
Rated current |
MAX 32A |
Rated Power |
MAX 22KW |
LED Indicator |
Yes |
LCD Screen |
- |
Start and Payment Method |
RFID Card / APP |
OCPP |
OCPP 1.6 |
Back-end communication |
4G (Standard)/ Ethernet (Option) |
Charging Connector |
IEC 61851 Standard Type2 Plug with 5m cable |
IP protection class |
IP 54 |
Standard |
EN 61851 |
Operation Temp. |
-30℃ ~ + 55℃ |
Storage Temperature |
-40 ° C ~ +70 ° C |
Working Humidity |
5%~95% without condensation |
Working Altitude |
<2000m |
Protection |
Over-Load protection ; Over-Voltage protection ; Under-Voltage protection ; Over-Current protection; Residual current protection ; Over-Temperature protection; Grounding protection; Lightning surge protection; Ethernet |
If you have any question, please feel free to contact us.
Tag: 22kw ev charger, manufacturers, companies
