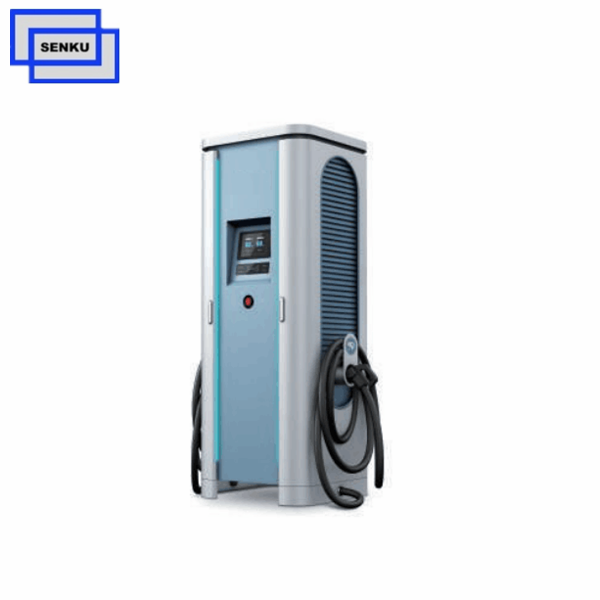

60KW CCS2 DC EV Charger
- Rated Voltage: AC400V±15%
- Rated output voltage(V): 250-750V
- Output Power: 60kW
- Output Current(A): 0~100A
- Product description: 1-The 60kw dc ev charger support the newest OCPP2.0 protocol.Easy connected to customer back-end and APP, realize remote control,charging,management. 2-The 60kw dc ev charger has 250~750V wide output
Product introduction
1- The 60KW dc EV Charger, meet the European charging standards for new energy vehicles.
2- Intelligent charger: setting control, management, query, display and other functions, all in one device. The entire charging process is under intelligent control.
3- With 2 charging guns, intelligent charging two electric vehicles at the same time, as well as super fast charging for one vehicles with two plug. Safe, reliable, efficient and convenient.
4- The 60kw dc ev charger support various payment methods, such as bank cards, IC Cards, App payment...
5- Perfect waterproof and dustproof design to meet the various indoor and outdoor installastion environment. Ensures the dc ev charger is able to maintain stable operation inharsh enviroment, such as high tor low emperature, heavy rain and high humidity...
6-Applicable for large electric bus stations, expressway service areas, electric car charging stations and other places. Suitable for all types of electric vehicles capable of DC fast charging.
Charging Guns: 1/2 Option
OCPP: Support OCPP 2.0
Certificate: TUV CE Certificate
Key Parameters
Electric Performance.
Line Voltage
AC 400V±10%
Frequency
50Hz ±10%
Voltage Type
3 Phase ; 3P + N + PE
Rated output voltage(V)
250-750VDC (Continuously adjustable)
Rated output Power
60KW
Output current (A)
0 -100A
Efficiency
≥94%
Plug Type
Combo - 2 (CCS2)
Charging Plug Quantity
1or 2 for option
Power factor (full load)
≥0.99
RFID-System
Visa/MasterCard(password required or not depends on the authority granted by the credit card issuing bank.)
HMI
Glare-free 7-inch touch screen,Display of the charging process
IP Level
IP54
Payment Method
RFID Card / APP / Credit Card (for option)
Communication Protocol
OCPP 2.0
Communication btw Charger&Vehicle
PLC
Communication btw Charger&Charger
Ethernet (Standard); 3G/4G/WIFI (for Option)
Standards
IEC 62196, SAEJ1772, EN/IEC61851-1, EN/IEC 61851-22, EN/IEC 61851-6-3, EN/IEC 61851-23, EN/IEC 61851-24, EN/IEC 61000-6-2, EN/IEC 61000-6-4
Storage temperature
-40 ºC to +70 ºC
Ambient temperature
-20~55℃ ; 55℃ ~ 70℃ Derating output
Humidity
5 ~ 95% no frost
Altitude
≤2000m Full load output
Noise
≤65dBA
Conformity and safety
TUV CE
Protection
Over-Voltage protection ; Over-Current protection; Under-Voltage protection ; Under-Current protection; Short Current protection; Over- Load protection; Earthing, lightning protection; Power outage protection; Full automatic stop protection
Note:
Any requirement please contact us to talk about the details.
