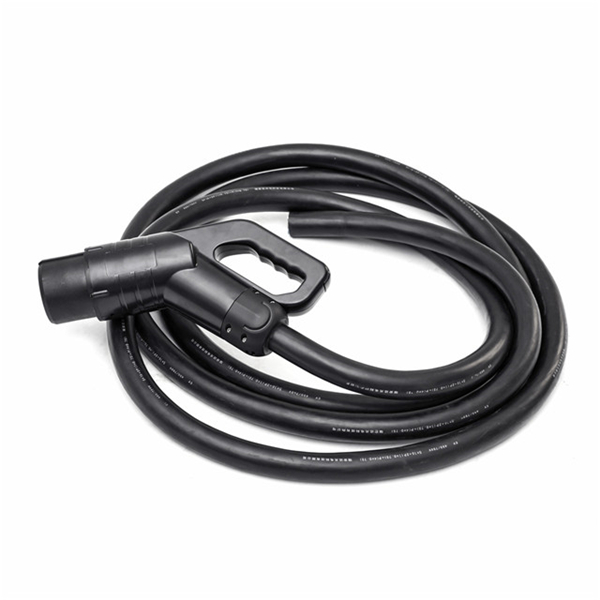

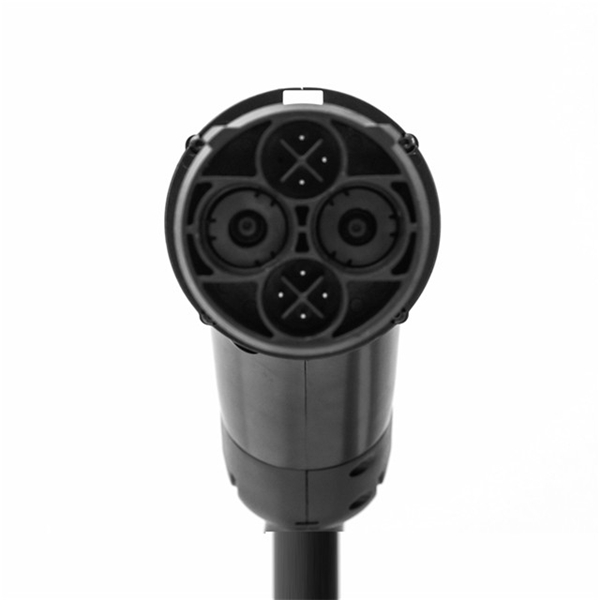

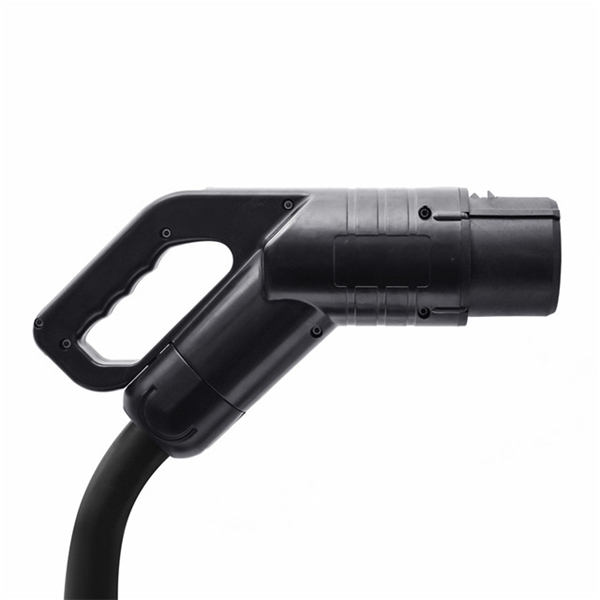

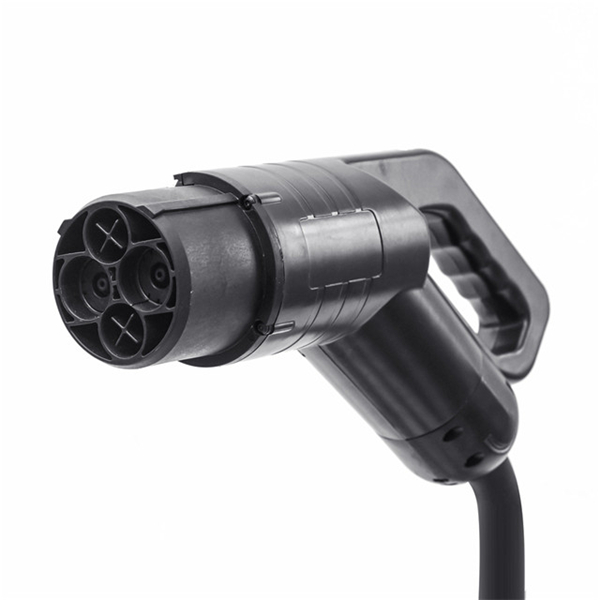

125A/ 150A/ 200A CHAdeMo Plug for Vehicle Side
- Rated Current: 125A /150A /200A
- Operate Voltage: 1000V DC
- Certificate: CE
- IP Level: IP54
- Product description: The chademo plug is design according to the Janpan Chademo ev charging standard, it can install on the Chademo ev charging station to charging all the chademo standard electric vehicles, such as the m
Product introduction
chademo plug
Features
1- The chademo plug with safty pins insulated head design to prevent accidental dirrect contact with staff.
3-The chademo plug can install on the fast ev charging station as electric outlet to charging the electirc cars.
Basic Data
Electric Performance. |
|
Rated current |
125A / 150A /200A option |
Operate voltage |
1000V DC |
Standard |
IEC 62196 Standard chademo plug |
Mechanical life |
no-load plug in / plug out > 10000 times |
Materia |
Thermoplastic, Flame retardant grade UL94-0; Pin: Cooper alloy,sliver + thermoplastic on the top |
Operation Temp. |
-30℃ ~ + 50℃ |
IP protection class |
IP 54 |
ANY QUESTION PLEASE CONTACT US.
Tags: chademo connector, chademo plug, manufacturers
