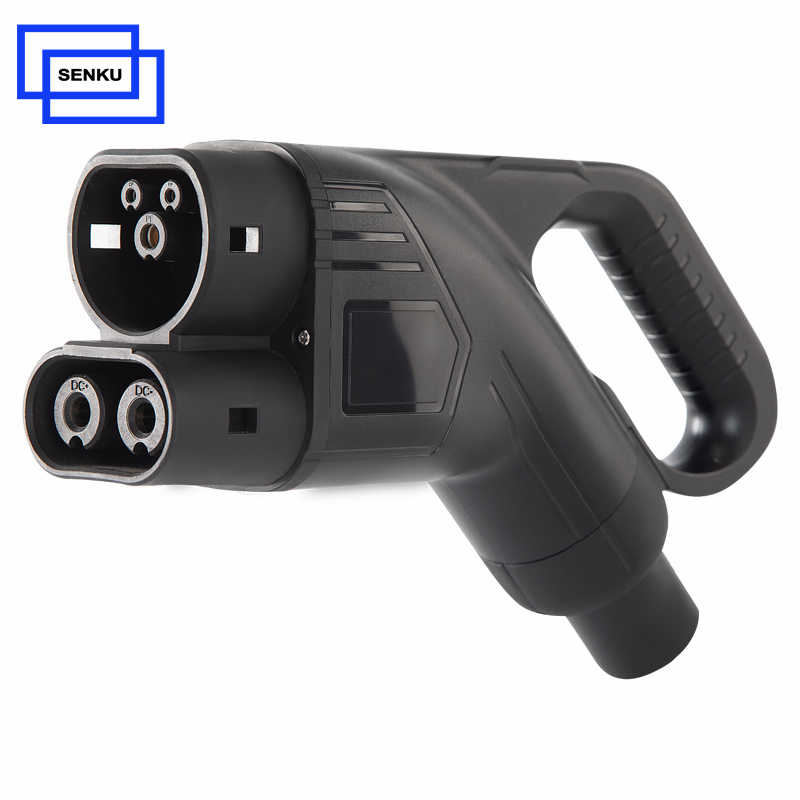

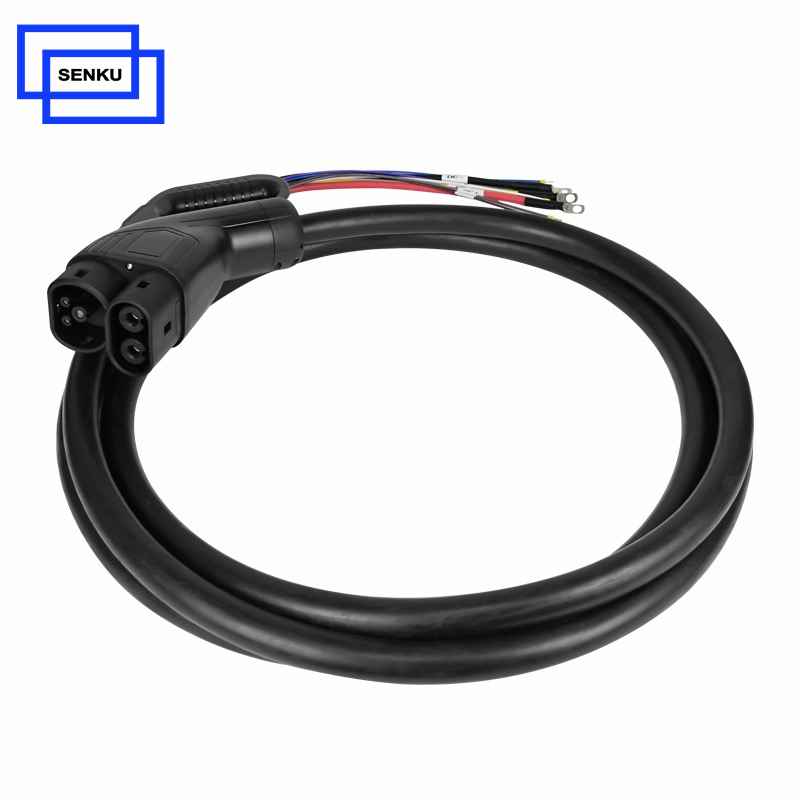

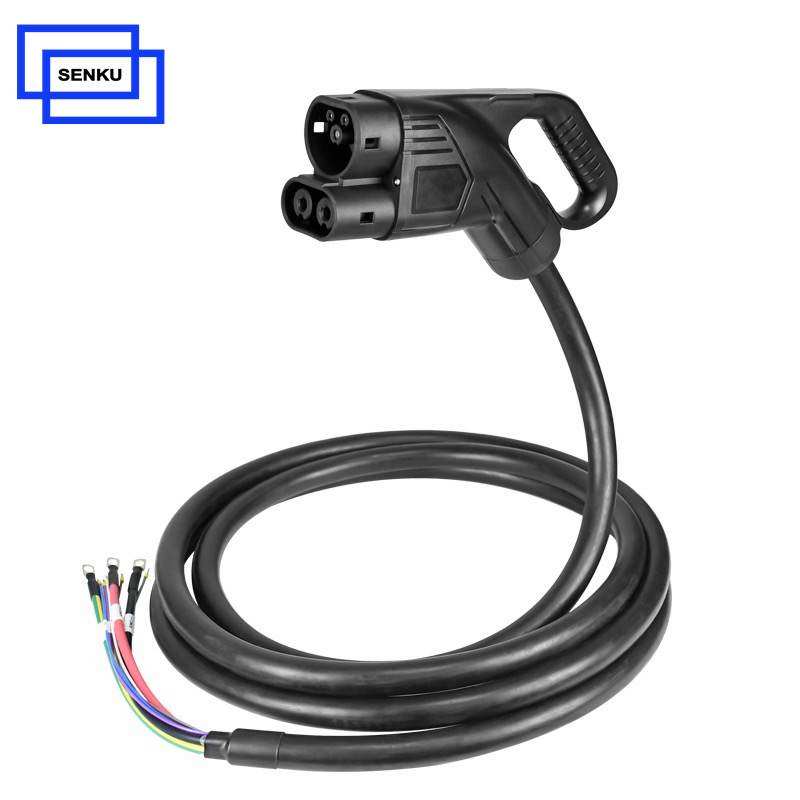

150A Combo 2 EV Charging Plug
- Rated Current: 150A
- Operate Voltage: 1000V DC
- Certificate: TUV CE RHOS
- IP Level: IP55
- Product description: As vehicle couplers (CCS2 EV charging plug and CCS2 EV charging inlet socket) for DC charging according to IEC 62196-3:2014. COMBO CCS Type 2 (CCS2) connector is extensions of the IEC 62196 Type 2 AC
Product introduction
As vehicle couplers (CCS2 EV charging plug and CCS2 EV charging inlet socket) for DC charging according to IEC 62196-3:2014.

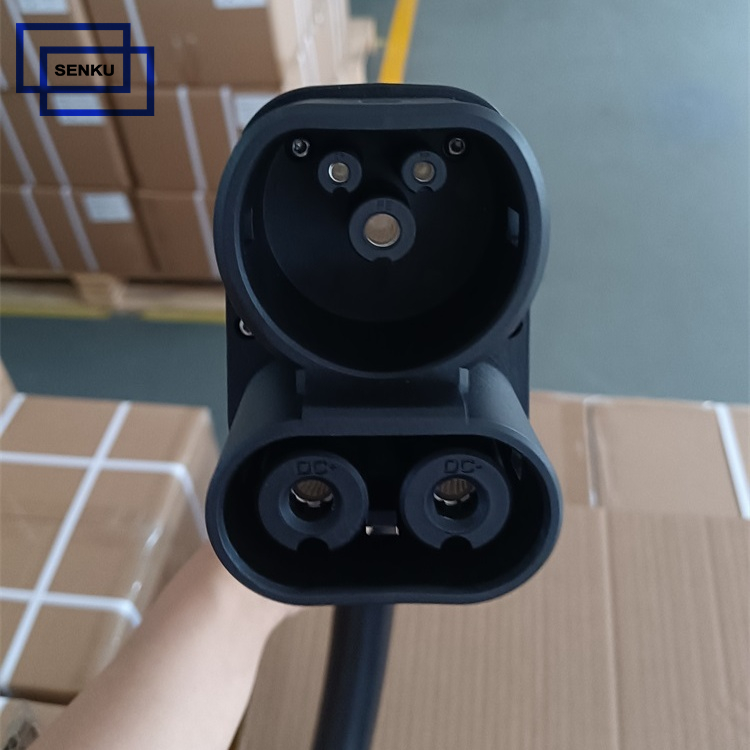

COMBO CCS Type 2 (CCS2) connector is extensions of the IEC 62196 Type 2 AC connectors, with two additional direct current (DC) contacts to allow high-power DC fast charging.
Electric Performance. | |
Rated current | 150A |
Operate voltage | 1000V DC |
Insulation resistance | >2000MΩ (DC1000V) |
Terminal temperature rise. | <50K |
Withstand Voltage | 3000V |
Contact Resistance | 0.5 megohm |
Mechanical life | no-load plug in / plug out > 10000 times |
Materia | Thermoplastic, Flame retardant grade UL94-0; |
Pin: Cooper alloy,sliver + thermoplastic on the top | |
Operation Temp. | -30℃ ~ + 50℃ |
IP protection class | IP 55 |
Standard | IEC 62196-1 IEC 62196-3 |
Certifications | TUV CE |
